KEMET R82 Polyester Film Capacitor STEP File Collection

This downloadable collection contains detailed 3D STEP models for KEMET R82 radial polyester film capacitors.

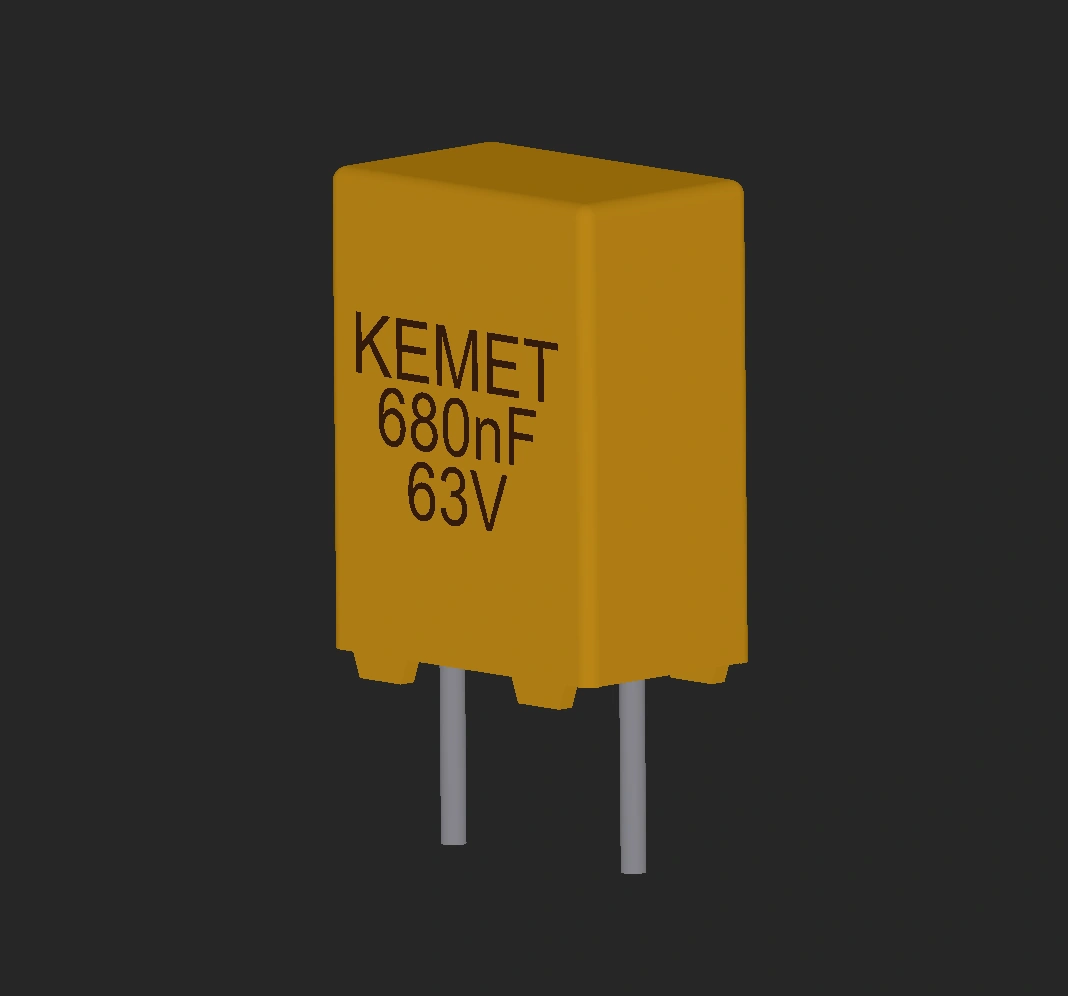

Each capacitor model was created according to its corresponding body dimensions and electrical variant. Unlike a generic capacitor model, every file includes the appropriate capacitance and rated voltage marking engraved on the front of the component.

The models are designed for use in PCB libraries, electronic assemblies, mechanical clearance verification and realistic 3D PCB visualisation.

Each model includes:

• Rounded plastic capacitor body
• Two separate metallic terminals
• 5.00 mm lead spacing
• 0.50 mm terminal diameter
• Approximately 4.00 mm visible lead length
• Engraved KEMET manufacturer marking
• Engraved capacitance value
• Engraved rated DC voltage
• Individual STEP file for each capacitor variant

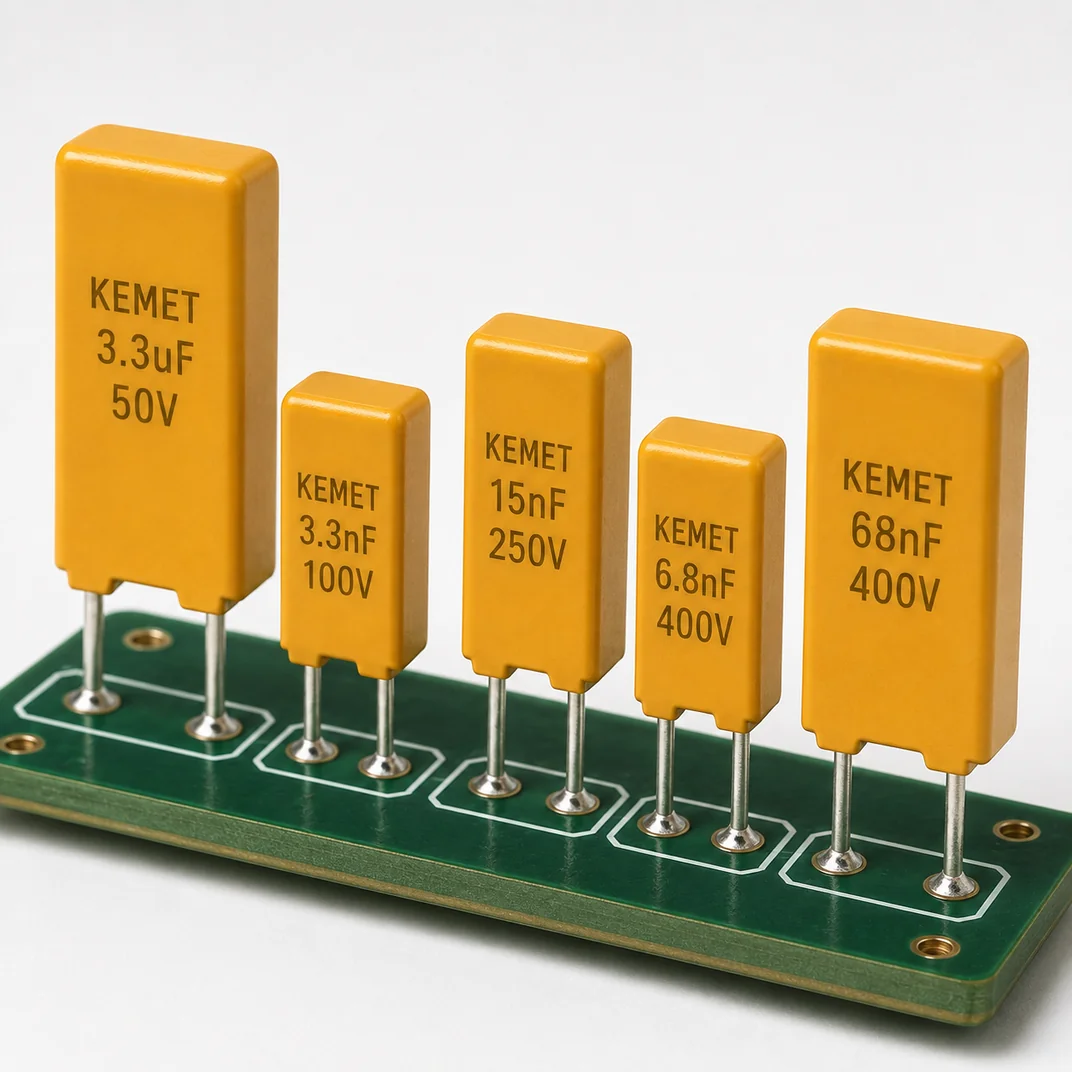

Example component marking:

KEMET
68nF
400V

The models are suitable for:

• Altium Designer
• KiCad
• FreeCAD
• SolidWorks
• Fusion 360
• Autodesk Inventor
• Creo
• Other ECAD and mechanical CAD software supporting STEP files

The STEP files contain the plastic body and the two terminals as separate solid bodies, making them suitable for realistic material and colour assignment in supported CAD applications.

Applications

These models can be used for:

• PCB component library creation
• 3D PCB visualisation
• Mechanical enclosure verification
• Component height and clearance checks
• Product rendering
• Documentation and assembly illustrations
• Digital mock-ups and design reviews

Component family

Manufacturer: KEMET
Series: R82
Component type: Radial polyester film capacitor
Lead spacing: 5.00 mm
Terminal diameter: 0.50 mm
File format: STEP
Delivery: Digital download

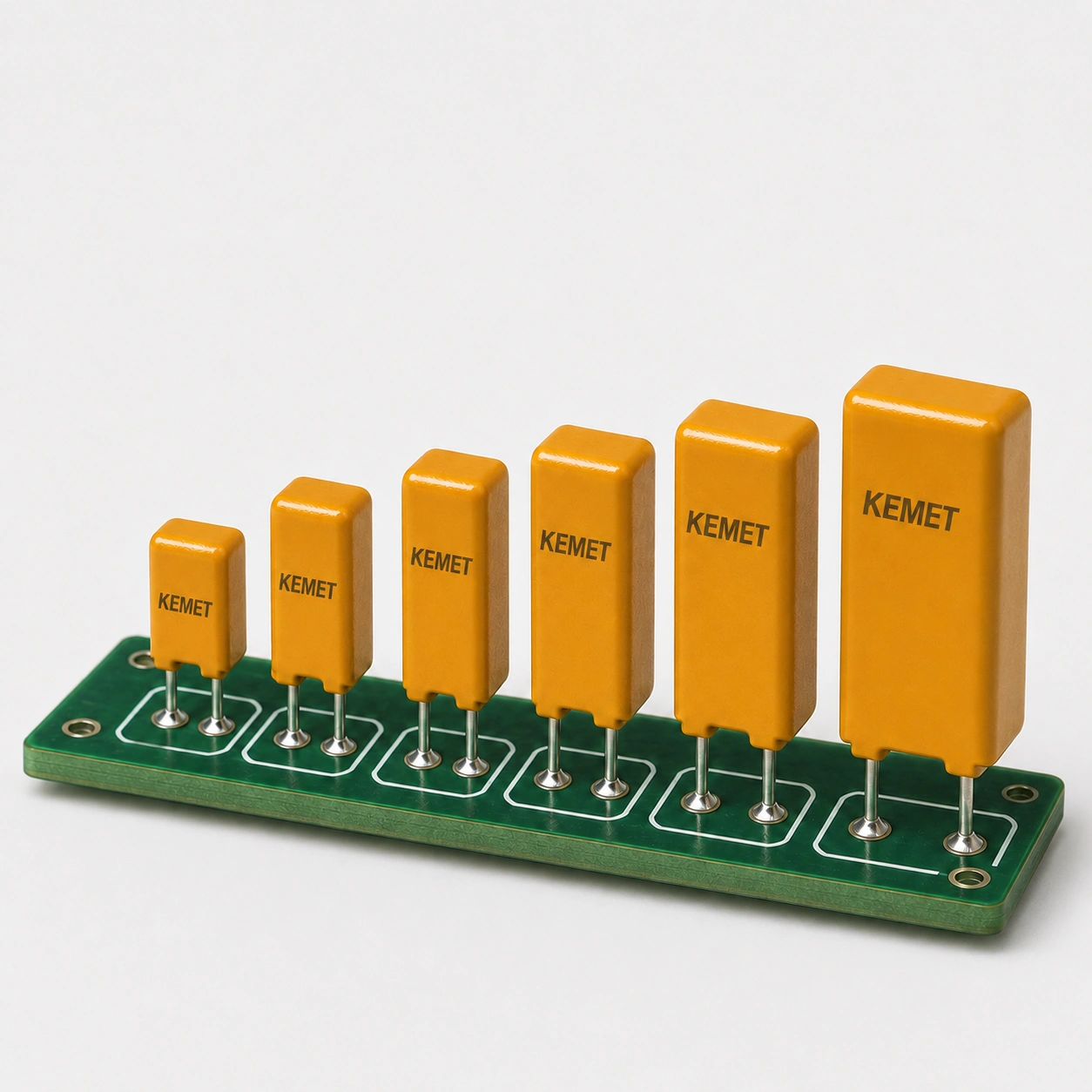

Included variants cover multiple capacitance values and rated voltages from the KEMET R82 capacitor family.

Please verify the selected STEP model against the dimensions and part number in the official component datasheet before using it for manufacturing or mechanical approval.

Components on the File:

82CC4220, 82CC4330, 82CC4470, 82DC3100, 82DC3150, 82DC3220, 82DC3330, 82DC3470, 82DC3680, 82DC4100, 82DC4150, 82EC1100, 82EC1150, 82EC1220, 82EC1330, 82EC1470, 82EC1680, 82EC2100, 82EC2150, 82EC2220, 82EC2330, 82EC2470, 82EC2560, 82EC2680, 82EC3100, 82EC3150, 82EC3220, 82EC3330, 82EC3470, 82EC3680, 82EC4100, 82IC1680, 82IC2100, 82IC2150, 82IC2220, 82IC2330, 82IC2470, 82IC2680, 82IC3100, 82IC3150, 82IC3220, 82MC1100, 82MC1150, 82MC1220, 82MC1330, 82MC1470, 82MC1680, 82MC2100, 82MC2150, 82MC2220, 82MC2330, 82MC2470, 82MC2680.
